Heavy Duty Multi-turn type ABSOCODER Sensor MRE For Wind Energy
NSD – Digihu Vietnam

Heavy Duty Multi-turn type ABSOCODER Sensor MRE For Wind Energy NSD – Digihu Vietnam

Have 4 Type Multi-turn ABSOCODER:

- Multi-turn type ABSOCODER Sensor MRE® (Standard type)
- Water Proof Multi-turn type ABSOCODER Sensor MRE®
- Heavy Duty Multi-turn type ABSOCODER Sensor MRE®
- ABSOCODER (Explosion-proof Encoder)

NSD multi-turn absolute position sensor named MRE ABSOCODER is an electro-mechanical sensor that measures the angular position under magnetic reluctance change. True heavy-duty MRE series has been proven to have excellent performance and durability at the actual production field under high shock, high temperature, and high-speed vibration.

Model:

①Sensor model	②Number of turns	③Shape	④Phase type	⑤Mounting	⑥Input shaft	⑦Connector type	⑧Interconnecting sensor cable (m)	⑨Silicon oil injected
MRE	32	S	P061	F	K	B	–	–
	32	S	P074	F	K	B	2	-G
	32	S	P101	F	K	B	2	-G
	1024	S	16TS100	F	K	P	2	-G

①Sensor model: MRE[Multi-turn type]

②Number of turns

SP061, SP074	SP101	1024S16TS100
32: 32 turns	32: 32 turns	1024: 1024 turns
G64: 64 turns	G64: 64 turns
G128: 128 turns	G128: 128 turns
G160: 160 turns	G160: 160 turns
G256: 256 turns	G256: 256 turns
G320: 320 turns	G320: 320 turns
	G512: 512 turns
	G1280: 1280 turns
	G2048: 2048 turns
	G2560: 2560 turns
	G3072: 3072 turns

③Shape: S[Cylinder type]

④Phase type:

- P[Standard type]
- 16TS[High-resolution type]

⑤Mounting

- F[Fiange-mount type]
- L[Base-mount type]
- M[Face-mount type (Only 074)]

⑥Input shaft: K[Sunk key]

⑦Connector type

- B[Standard connector for NSD standard cable]
- R[Terminals for commercially available cable and NSD standard cable]
- P[Large connector for JKPEV-S cable]
  (Only MRE-1024S16TS100 selectable)

⑧Interconnecting sensor cable (m)

- 2[2m] 5[5m] 10[10m] 15[15m] 20[20m]
  MRE-□SP061:only by 2m

⑨Silicon oil injected: G[Silicon oil injected] Blank[None]

The MRE-G sensor allows for a slight backlash due to the reduced gear.

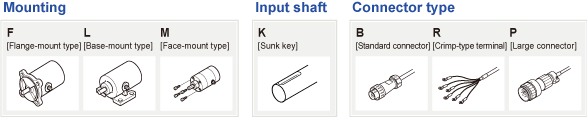

Mounting F[Fiange-mount type] L[Base-mount type] M[Face-mount type] Input shaft K[Sunk key] Connector type B[Standard connector] R[Crimp-type terminal] P[Large connector]
